Brand Name: |
DMM |
---|---|
Force Rating: |
Breaking strength of 45kN (outer kidney slots) and 150kN (central eye) |
Size (color): |
Large |
Color: |
Purple |
Weight: |
550 grams (19.4 oz) |
Dimensions: |
169mm (6.65 in) |
Mfg Sku/Part Number: |
ARB-HUB175 |
UPC: |
5031290200332 |
Super-strong plate for rigging and rescue use

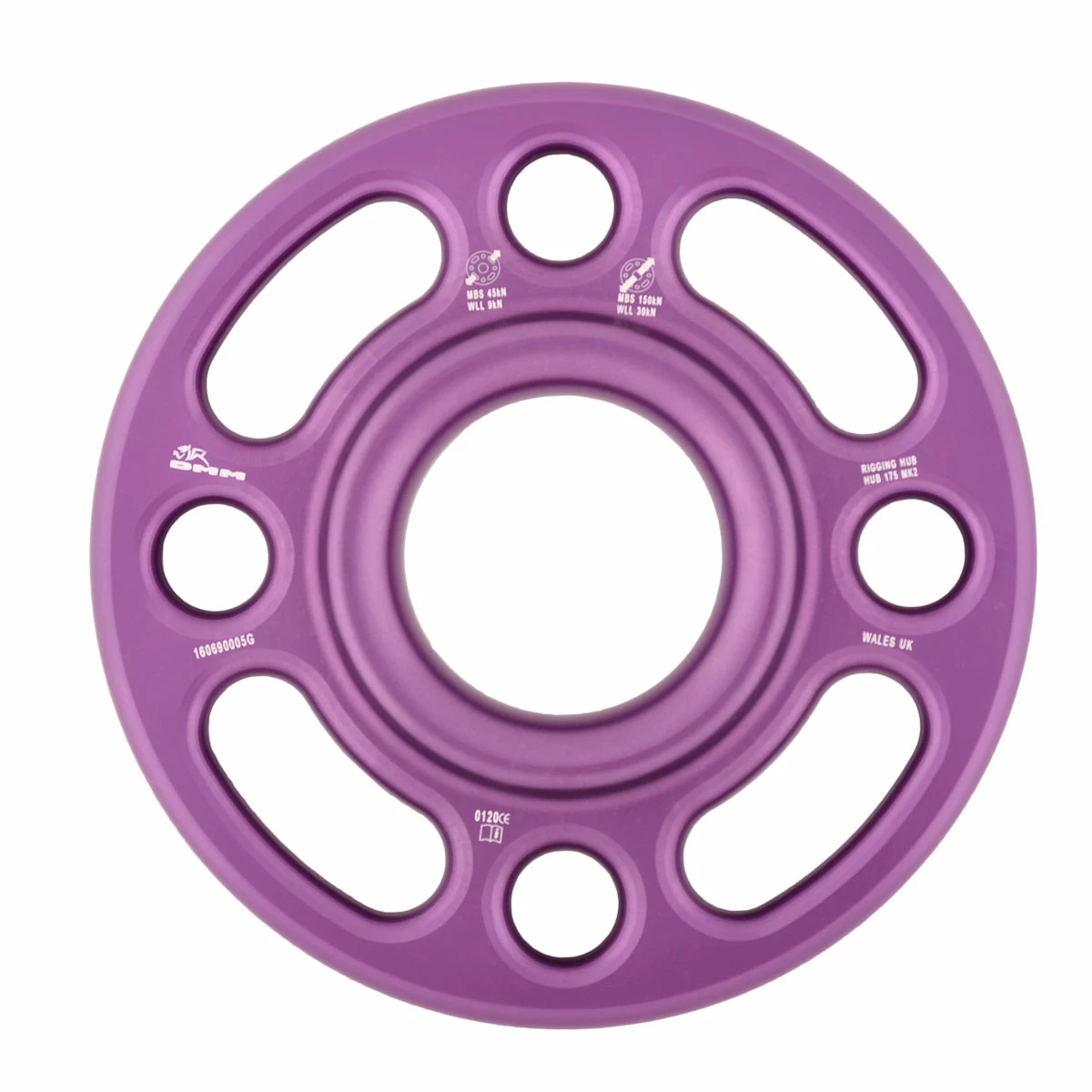

The Large Rigging Hub by DMM features 4 kidney-shaped slots with a super strong central eye and 4 smaller hang points, giving you a number of options and allowing for some serious, complex rigging options. The Large Rigging Hub also has 4 additional clipping eyes. With all of these attachment options, imagination may be the only limiting factor in their use.
Other Features:• Conforms to EN795(b):2012 and NFPA 1983 (2012 Ed) Class G
• Textile friendly connection points suitable for rope, webbing and opposed connectors
• Central hole can accommodate a running rope and facilitates 3D rigging
• CNC machined from top grade alloy for strength, durability and lightness
• Anodized to BS EN 7599:2010 AA10 Sealed for corrosion protection
• Recommended for rescue and rigging applications
• Individually marked for traceability
